Revolutionize Your Alarm System Control
The XT GPRS Radio Transceiver.
Experience seamless control and monitoring of your security systems with our advanced GPRS alarm transmitter, designed for ultimate convenience and peace of mind.
Remote Access
Manage your security systems from anywhere using the NXTFOX APP.
Instant Alerts
Receive real-time notifications for any security breaches or system updates.
User-Friendly Interface
Navigate through your security settings with ease and efficiency.
Key Features of the GPRS Communicator
Seamless System Control
Real-Time Monitoring
Network Resilience
User-Centric Design
Multi-System Compatibility
Enhanced Security Protocols
Customizable Settings
Efficient Power Management
Scalable Solutions
Secure Data Transmission
Remote Configuration
Automatic Updates
Comprehensive Support
Robust Construction
Signal Jamming Detection
Technical Information
General
Frequency range 850/ 900/ 1800/ 1900MHz
Frequency control Synthesized
Channel spacing 200 Khz
Operating temperature range -40 to + 85°C
Termination SMA Female
Antenna Impedance 50 Ohms
Dimensions W 101 x D 31 x H 109 mm
Receiver
Sensitivity -109 dBm
Transmitter
RF output power 1W class1 & 2W class4
ITU Emission code GXW
Modulation type GMSK
Data Rate 85.6 Kbps
GPRS Mobile Station Class B
Power supply
DC 13.8 volts (3A) DC
Current Consumption
Standby 10 mA
Max Transmit: 2 watt 2.2 amp
Antenna Type
0dB Gain Dual Band PCB Antenna
5dB Gain Dual Band Whip Antenna
ICASA type Approval
Type approval number TA-2015/2416

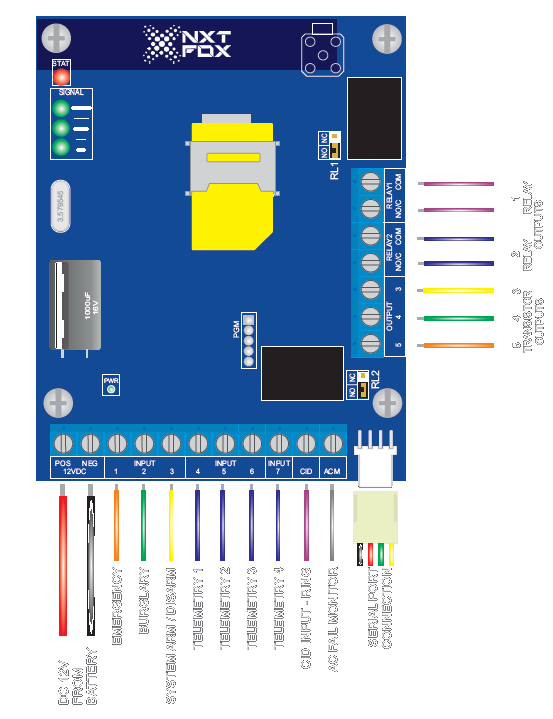

How to Install using Triggers
Individual Inputs
The 7 individual inputs, are defaulted to positive trigger activation and pre programmed for connection to a standard Alarm Panel.
Inputs are triggered by external triggers that may be from an alarm panel, remote receiver or any other 12V DC switching device.
All the inputs may be programmed for individual custom definitions with high or low state reporting. Negative triggering and input definitions are configured via the online programming portal.

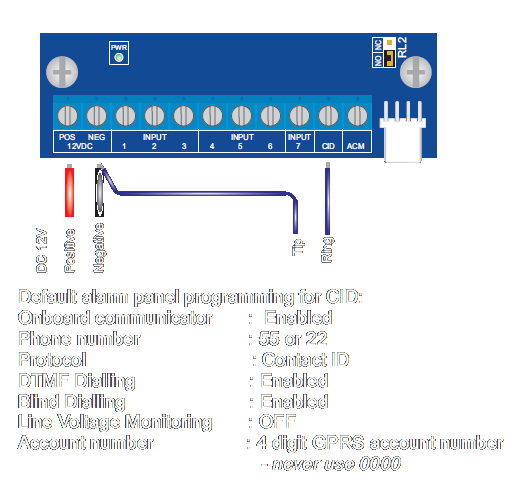

How to install using Contact ID
Contact ID input
The contact ID input is connected from the alarm panel Ring and Tip phone line connection. The GPRS communicator reads and replies to activations sent on CID from the alarm panel and relays the information to the control room software and connected NXT Level APP.
When the CID input is used it is important to program the alarm panel with the GPRS 4 digit account number i.e. 0617 and the communicator telephone number to 55. Set the communication format to Contact ID and disable
Line Voltage Monitoring. View Diagram 1 for connection.
Click here to Download the PDF manual.
